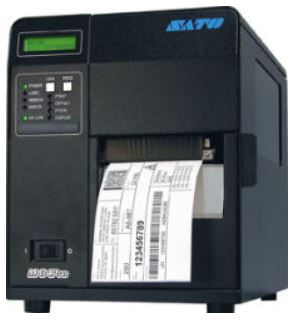

Sato M84Pro Printer Parts
Item #'s Part Number Description Price Add to Cart
2 PT6680100 Case Leg(Rubber Foot) $3.96

4,6,8 MD4301022 Pan Head Screw $.55

7 PT9689000 Magnet Catcher $7.59

9 R00900020 Cover(Front) $64.85

10,14 MD4401022 Pan Head Screw $.55

11 PE1680200 Protector $3.00

13 P02515000 Center Frame $84.50

16,18,20 MD4300622 Pan Head Screw $.50

17 P02156000 Center Frame Sub(A) $16.50

25,28,35 MD4300822 Pan Head Screw $.50

26 P02519000 Cover (RH) $98.80

27 PT3681200 Hinge $15.00

29 PH2680000 Window $41.70

30,39,41,46 NA1030022 Flat Washer $.50

31,40,43,48 MT1300522 Hex Nut $.50

32 PE1680300 Handle $34.50

33 MH0300821 Pan Head P-Tap Screw $.50

34 P02520000 Cover(Top) $64.55

36 R01106000 Cover(Top Sub) $56.35

37 PT9689000 Magnet $7.59

38,41,46 NA1030022 Plain Washer $.50

39,42,47 NB0030022 Spring Washer $.55

45 PH1741000 Cover(Front)Sub $33.35

50 PB0740701 Shaft(Unwind) $33.35

51 MD4301422 Pan Head Screw $.55

52 MJ1400524 Hex W-Point Screw $.50

53 PB2680700 Spacer $5.25

54 PA2680100 Label Guide Plate $59.70

55 PE2680200 Spacer $19.00

56 PV3680000 Paper Guide $4.80

57 MH0302021 Pan Head P-Tap Screw $.50

58 PE4080100 Paper Guide $9.20

59 PT2016010 Dry Metal $6.00

60 PE4210100 Guide Core $7.20

62 PT92100QY O Rubber Ring $5.70

63 ND3160024 C-Snap Ring $1.80

64 PB2080400 Roll Stopper $21.00

65 PE4080200 Guide Stopper $25.08

66 PA1210400 Hold Spring $18.48

67 MH1300821 Flat Head P-Tap Screw $.50

68 KA500831A Power Supply Assy(115V) $400.00

69 HD100321A Ceramic Fuse(250V/3.15A) $6.16

70 R00558000 Head Power Cord Sub Assy $63.58

80 RH1745500 POW SW Sub $17.95

82 RH1745700 LCD Cable Set $164.23

83 MD4200621 Pan Head Screw $.50

85 MA0300621 Pan Head Screw $.55

89 MD3201221 Pan Head Screw $.55

100 RH1720400 KB Cable Set $29.70

105 R02164000 Memory PCB (Std. Flash Memory) $142.15

106 PA3739900 Connector Lock $4.57

111 R02165000 Memory PCB (4MB Upgrade Option) $195.00

113 R02161000 Sub PCB Assy $271.20
M84Pro - Base Cover Assembly Parts(Not All Parts Are Shown, Please Contact Us for Pricing)
Sato Industrial Printer Ribbons
Sato M84Pro Printer Parts
M84Pro Printer Parts List
Item #'s Part Number Description Price Add to Cart
4,42,51,79,86,90,94 ND0040030 E Snap Ring $.50

5 PE5680000 Guide Shaft $7.37

6 PR3740501 Slide Guide $13.35

7 PB2680100 Knob $8.40

8 PE1010400 Guide Roller(A) $4.20

9 MH0302021 Pan Head P-Tap Screw $.50

10 MH0301221 Pan Head P-Tap Screw $.50

12,25,60,64 MD4401022 Pan Head Screw $.55

14 PL1770200 Motor Pulley $19.69

15 MJ1400524 Hex Socket Set Screw $.50

16 MD4401222 Pan Head Screw $.50

18 RH1740500 Head Open SW Cable Set (SEN5) $22.50

19,31 MD3201221 Pan Head Screw $.55

21,45,56,58 MD4300822 Pan Head Screw $.55

24 PA1740200 Side Frame $15.55

30 RH1741300 Paper End SW Code Set(SEN7) $29.60

32,83,97 MD4300622 Pan Head Screw $.50

33 MD4301022 Pan Head Screw $.55

34 PB0740101 Post(Latch) $17.90

35 NA1040022 Plain Washer $.50

36 NB0040022 Spring Washer $.55

37 MT1400722 Hex Nut $.55

38 PB0740202 Shaft(Sensor) $21.65

39 PR7740200 Pitch Sensor Sub $170.00

40 PA4740300 Plate Spring $5.80

41 MH0300821 Pan Head P-Tap Screw $.50

43 PA1740300 Sensor Bracket $2.45

44 ND0030030 E-Snap Ring $.50

47 MD4401621 Pan Head Screw $.55

49 PE3720100 Tension Roller $4.62

50 PB0740900 Shaft (Tension Roller) $11.00

52 PC0740100 Spring(Tension) $9.24

53,63 MD4301422 Pan Head Screw $.55

54 MT1300522 Hex Nut $.50

59 PA1741000 Adjust Plate $6.10

61 PA1680200 Ball Supporter Clamp $4.84

66 PT1112060 Ball Supporter $14.63

68 R00907003
(Replaces R00907001)
Platen Roller Assy(Without Play) $55.00

69 R00908000 Feed Roller Sub $49.00

70 P02525000 Rubber Damper $17.90

71 K00014000 Stepping Motor $226.70

76 PT8155064 Timing Belt $20.68

80 PR1733200 Pulley $10.00

81 P01101000 Tension Spring $5.35

85 PR1732600 Tension Roller $16.65

87 R00914000 Pulley $8.18

88 P01100000 Shaft(Pulley) $4.35

89 PT1110060 Bearing $14.45

91 P02527000 Timing Belt $16.95

92 P02528000 Timing Belt $16.95

93 R00913000 Tension Br. (Roller) $5.80

95 PE3720100 Tension Roller $4.62

96 P01101000 Tension Spring $5.35
M84Pro - Frame Assembly Parts(Not All Parts Are Shown, Please Contact Us for Pricing)
Item #'s Part Number Description Price Add to Cart
1 P01065020 Head Bracket $16.50

2,41 MD4300622 Pan Head Screw $.50

3 MT1300522 Hex Nut $.50

4 MA0300821 Pan Head Screw $.50

5 P01068000 Adjust Plate $29.43

6 P02644010 Screw(Head) $21.10

7 ND0030030 E Snap Ring $.50

8 P02389000 Plate(Guide) $28.81

10 RH1741800 Head Bracket FG Cord Set $9.45

13 ND0060030 E Snap Ring $.55

14 PC2740101 Spring(Open) $19.55

15 MA0301622 Pan Head Screw $.50

16 P02643000 Spring(Adjust) $4.35

17 R00558000 Power & Head Power Cord Sub Assy $63.58

18 R01435000 Thermal Head Cord Set $83.35

19 PB0740401 Shaft(Head Pressure) $35.40

20 PE1740100 Head Pressure Br $7.92

21 PA0740100 Pressure Plate $2.31

22 PC1740200 Spring(Head) $16.65

23 PE1740200 Head Pressure Pin $6.65

25 PA3740600 Adjust Plate $4.15

26 MD4301422 Pan Head Screw $.55

27 PA1740500 Head Frame $6.10

29 PR2740100 Latch Handle $5.85

31 MD4401621 Pan Head Screw $.55

32 PT9740300 Poly Slider $2.70

34 PR1740400 Roller $32.50

38 MD4401022 Pan Head Screw $.55

40 P02423000 Cover(Cable) $18.40

43 WWM845800 Print Head 203 dpi $526.00

44 WWM845810 Print Head 305 dpi $630.00

45 WWM845820 Print Head 609 dpi $1,086.00
M84Pro - Head Assembly Parts(Not All Parts Are Shown, Please Contact Us for Pricing)
Item #'s Part Number Description Price Add to Cart
1 MD4301022 Pan Head Screw $.55

2 P02523000 Spring(Back) $10.70

5 PA3730200 Sensor Br (Ribbon) $4.80

6 RH1740400 Ribbon Sensor Cable Set (Sen4) $44.17

9 PE6720100 Disk Plate Cover $4.62

10 MD4300822 Pan Head Screw $.50

18 MT1300522 Hex Nut $.50

22 PE7720100 Disk Plate(A) $5.28

23 PE1681100 Guide Plate (B) $4.62

25 PE2720100 Collar $3.30

29 MA0300421 Pan Head Screw $.50

31 PE2730100 Stopper Collar $1.32

32 M00001000 Button Cap Screw $2.37

34 PT1112080 Ball Supporter $14.52

35 P00166000 One-Way Limiter $22.66

36 P02524000 Timing Belt $20.75

37 PT9740300 Poly Slider $2.70

39 PA1731000 Adjust Plate $1.80

41 MD4300622 Pan Head Screw $.50

42 MD4401222 Pan Head Screw $.50

43 MD4401022 Pan Head Screw $.55

44 P00170000 One-Way Limiter $21.62

51 P00180000 Torque Limiter $18.65
M84Pro - Ribbon Assembly Parts - Serial # 311XXXXX (Not All Parts Are Shown, Please Contact Us for Pricing)
Item #'s Part Number Description Price Add to Cart
1,41 MD4300622 Pan Head Screw $.50

2,45 PC0740200 Spring(Back) $9.79

3 MA1300822 Flat Head Screw $.55

4,16 MT1300522 Hex Nut $.50

5 PA3730200 Ribbon Sensor Bracket $4.80

6 RH1740400 Ribbon Sensor $44.17

9 PE6720100 Disk Plate Cover $4.62

10 MD4300822 Pan Head Screw $.50

13 PB0740602 Ribbon Shaft $32.10

14 PE4720200 Plate Holder Boss $1.32

17 MA0301821 Pan Head Screw $.55

18 PA0730100 Guide Plate $6.16

19 MH1250621 Flat Head P Tight Screw $.55

21 PA0680300 Ribbon Friction Washer $16.17

22 PE7720100 Disc Plate (A) $5.28

23 PE1681100 Guide Plate $4.62

24 PR1730900 Ribbon Boss(With 2 Collars) $19.80

25 PE2720100 Collar $3.30

28 PT2301020 Dry Metal Washer $6.16

29 PA0680400 Disc $4.62

30 PC1730100 Spring - Ribbon $12.32

31 PE2730100 Stopper Collar $1.32

32 PB5730100 Adjust Screw $17.49

33 MA0303022 Pan Head Screw $.55

34 PT1112080 Supporter $14.52

35 PR1720400 Pulley $35.64

36 PT8165064 Timing Belt $17.10

37 ND0060030 E-Ring $.55

39 PA1731000 Adjust Plate $1.80

44 PR1770100 Pulley $62.32

46 MH0300821 Pan Head Screw $.50

47 PA2771300 Spring Bracket $11.00
M84Pro - Ribbon Assembly Parts - Serial # 312XXXXX & Above (Not All Parts Are Shown, Please Contact Us for Pricing)
Item #'s Part Number Description Price Add to Cart
1 PA3742201 Paper Lid (Bottom) $18.90

2 PA3742001 Lid Bracket $7.75

3 PC2740200 Spring (Open) $20.70

4 PC2740300 Spring (Latch) $8.40

5 PA3742100 Latch Handle $6.80

6 PB0741100 Shaft (Lid) $12.40

7 ND0020030 E Snap Ring $.50

8 PA3741900 Roller Bracket $7.75

9 PE3720500 Roller $1.20

10 PE3720200 Roller $1.20

11 PB0741000 Shaft (Pressure Roller) $18.75

12 ND0040030 E Snap Ring $.50

13 PC1740401 Spring (Pressure) $5.85

14 PE2730300 Stopper Collar $4.20

15 PR4740300 Paper Lid (Top) $15.80

16,19 MD4300622 Pan Head Screw $.50

17 MT1300522 Hex Nut $.50

18 MA0301022 Pan Head Screw $.55

20 MD4301022 Pan Head Screw $.55
M84Pro - Feed Roller Assembly Parts(Not All Parts Are Shown, Please Contact Us for Pricing)
Item #'s Part Number Description Price Add to Cart
1 PR4680600 Cutter Unit $530.16

3 PT3000100 Hinge $16.40

4,48,58,60 MA1300822 Flat Head Screw $.55

7 PT1108050 Ball Supporter $15.84

8 PB3680200 Dispenser Roller $34.65

9 ND0030030 E Snap Ring $.50

10 RB0680300 Stepper Motor Assembly $110.00

12,76 MD4401022 Pan Head Screw $.55

13 PT9680300 O-Ring Belt $4.40

16 PA3684600 Cutter Bracket $4.80

17,61,70 MD4300622 Pan Head Screw $.50

18,27,47,50,68,72 MD4300822 Pan Head Screw $.50

20,39,45,74 MJ1300424 Hex Socket Set Screw $.55

24,57 MT1300522 Hex Nut $.50

25,56 NB0030022 Spring Washer $.55

26,55 NA1030022 Plain Washer $.50

32 ND0050030 E Snap Ring $.50

35 PT9690600 Timing Belt $29.65

36 PT1107030 Ball Supporter $15.40

49 RB0680200 DC Motor Assy $557.40

51 RJ1683601 Cut PCB Assy $268.20

52 HD200031A Fuse (3A) $4.62

67 PA3683600 Cutter Protect $32.40

75 QD9480100 Cutter Oil(Only for Cutter) $9.46
M84Pro - Cutter Unit - Option(Not All Parts Are Shown, Please Contact Us for Pricing)
Item #'s Part Number Description Price Add to Cart
5 PR0681900 Feed Roller $156.00

6 PE2680400 Bush $.55

10 ND0040030 E Snap Ring $.50

11 JG100011A Tie Wrap $.50

12 PE1570300 Demand Sensor Bracket $1.35

13,26 MH0250621 Pan Head P-Tap Screw $.50

14 RH1681100 Dispense Sensor Cord Set $42.00

16 PE1010201 Demand Roller $2.40

17 PV0681100 Dispense Roller $4.40

20 PC2680102 Spring(R) $8.40

21 PC2680101 Spring(L) $8.40

22 PB3680101 Pressure Roller $89.00

25 PE1570300 Demand Sensor Bracket $1.35

34,38 MA1300622 Flat Head Screw $.50

37 PA1680400 Nut Plate $4.00

40 MD4300822 Pan Head Screw $.50

42 MD4300622 Pan Head Screw $.50

44 MD4401022 Pan Head Screw $.55
M84Pro - Dispenser Unit - Option(Not All Parts Are Shown, Please Contact Us for Pricing)

M84Pro - Base Cover Assembly Parts
M84Pro - Frame Assembly Parts
M84Pro - Head Assembly Parts
M84Pro - Ribbon Assembly Parts for S/N 311XXXXX
M84Pro - Ribbon Assembly Parts for S/N 312XXXXX & Above
M84Pro - Feed Roller Assembly Parts
M84Pro - Cutter Unit Parts
M84Pro - Dispenser Unit Parts
